رله 2 کاناله (wifi-lan)

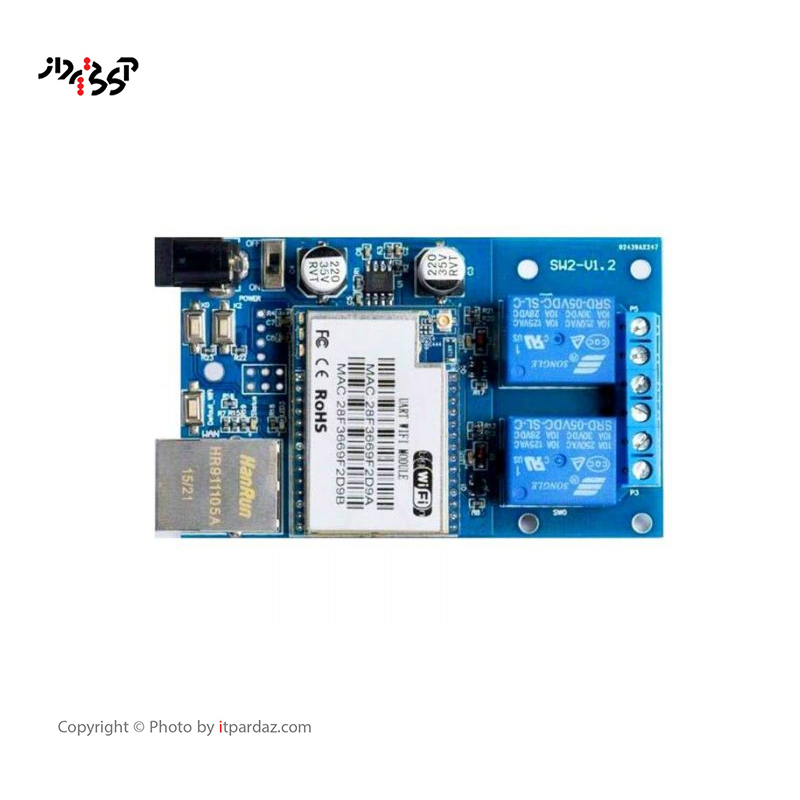

رله 2 کاناله بهمراهWi-Fi  (HLK-RM04-E) یک ترمینال جدید کنترل از راه دور است که توسط شرکت Hi-Link Electronic طراحی و عملیاتی شده است این ماژول به صورت ترکیبی از مبدل و رله عمل می کند که شامل درگاه های اعلامی در ذیل است:

-ETH-WIFI ) Ethernet-Wireless network) می باشد و کاربر قادر به انتقال Ethernet به Wi-Fi می باشد و همچنین شامل 2 رله، با توانایی کنترل رله ها از طریق شبکه (LAN (Ethernet و Wi-Fi از راه دور مهیا می باشد.

HLK-SW2 specification

1.Smart size:85*53*19mm

2.Low power wifi module

3.Support 802.11b/g/n protocol

4.Support wireless security WEP/WPA-PSK/WPA2-PSK/TKIP/AES

5.Need no driver, just use as the normal serial port for users’ PC

6.Support AP/STA

7.Support TCP Server/TCP Client/UDP Server/UDP Client work mode

Characteristic

Interface

RS232(DB9 Male)

The range of baud rate: 1200~ 115200bps

single 5V power supply

Wireless

support IEEE802.11b/g wireless

standards

support the range of frequency: 2.412~2.484 GHz

support two types of wireless

networks:

Ad hoc and Infrastructure

support multiple security authenti- cation mechanisms

WEP64/WEP128/ TKIP/CCMP(AES)

WEP/WPA-PSK/WPA2-PSK

support quick networking

support wireless roam

Others

support multiple network protocols:

TCP/UDP/ICMP/DHCP/DNS/HTTP

support two types of work modes:

auto and command

Support transparent transmission

mode

support AT+ instruction set

support a variety of parameters configuration methods:

serial/WEB server/wireless conn- ection

Application

intelligent bus network, such as wireless credit card machine

small financial payment network, such as wireless POS machine

industrial equipment networking, such as wireless sensor things
